Extended configuration
General
The extended configuration of the FLS-M is carried out by setting the pins on the DIP switch (2) and by loading a configuration file via USB (5).
- Different LED types can be connected to the FLS-M. The additional setting on the DIP switch is necessary so that the LED channels can be assigned correctly in the Matter Controller App. Additional configurations can only be enabled with the Config-Builder.
Note:
Any change to the DIP switch will only take effect after the power supply has been disconnected.
LEDs
The FLS-M can work with both classic LED strips and individually addressable LEDs.
Classic LED strips
- common anode
- constant voltage DC 5V, DC 12V, DC 24V
- dimmable via PWM
- RGB (red, green, blue)
- RGBW (red, green, blue, white)
- RGB+CCT (red, green, blue, warm white, cold white)
- single-color LED strip
- CCT (warm white, cold white)
| DIP | LED type | Endpoints | Description |
|---|---|---|---|
 |
RGBW | 1 | Factory new |
 |
RGB | 1 | |
 |
RGB + CCT | 1 | |
 |
Single | 1 | |
 |
Single | 5 | Each strip can be controlled separately |
 |
RGB + CCT | 2 | RGB and CCT can be controlled separately |
 |
CCT | 1 |
Individually addressable LED strips
- LEDs with LED controller such as WS2812, WS2812B, TM1814, SK6812
- constant voltage DC 5V, DC 12V, DC 24V
- Controllable via data line
- RGB (red, green, blue)
- RGBW (red, green, blue, white)
- up to 4096 individually controllable LEDs possible
Note:
In certain combinations, both classic and individually addressable LED strips can be used at the same time. These can only be created with the Config-Builder.
USB interface
The FLS-M can be configured via the USB-C interface and programmed with new software.
- Disconnect the FLS-M from the external power supply unit or switch off the power supply unit
- Connect the FLS-M to the PC/laptop via USB-C
- Open external program and search for connected FLS-M
- Activate connection
- Select and update new firmware
- Load new config file from the Config-Builder
Attention:
When using the USB-C, the FLS-M must be disconnected from the external power supply unit or the power supply unit must be switched off.
If the FLS-M is connected via USB-C, only the microcontroller is supplied with power. The LED driver is not controlled. No LEDs can be switched on.
Summary
Die folgende Tabelle zeigt die am DIP-Schalter einstellbaren Optionen.
| DIP | LED mode | LED type | End points | Description |
|---|---|---|---|---|
|
PWM | RGBW | 1 | Factory new |
|
PWM | RGB | 1 | |
|
PWM | RGB + CCT | 1 | |
|
PWM | single | 1 | |
|
PWM | single | 5 | Each strip can be controlled separately |
|
PWM | RGB + CCT | 2 | RGB and CCT can be controlled separately |
|
PWM | CCT | 1 | |
 |
Data | RGB Addressable | 1 | 900x LEDs |
 |
- | - | - | Customized configuration* |
The position of the DIP switch is ignored. Only the externally created configuration file loaded via USB is accepted.

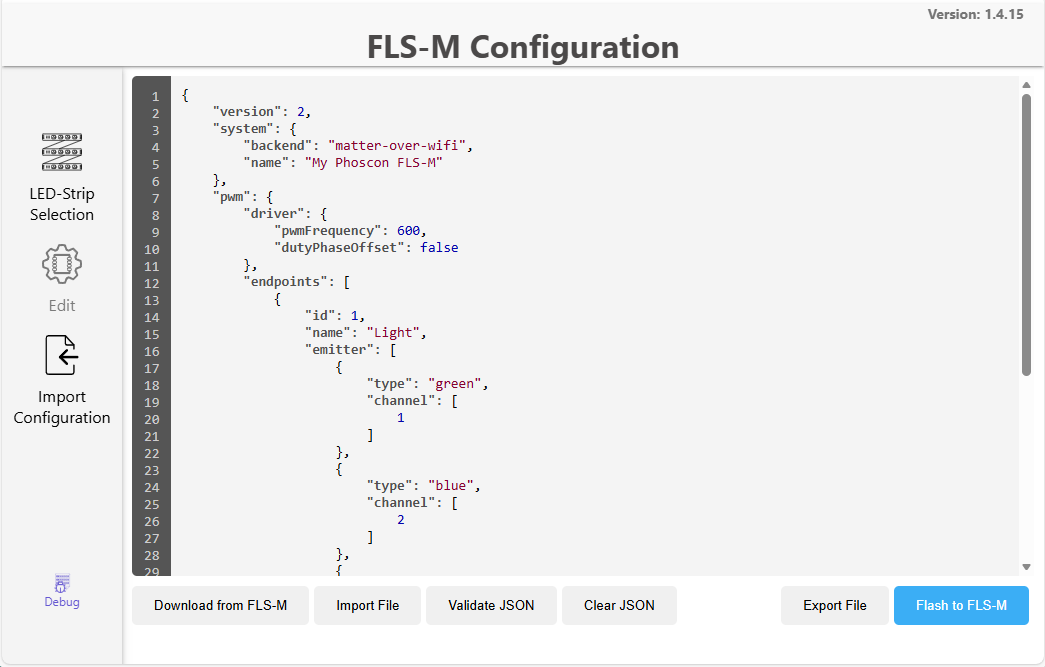

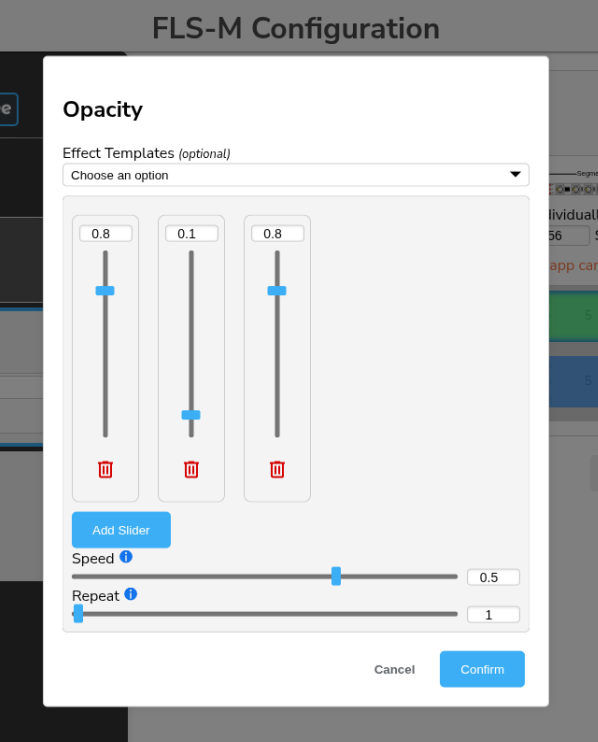

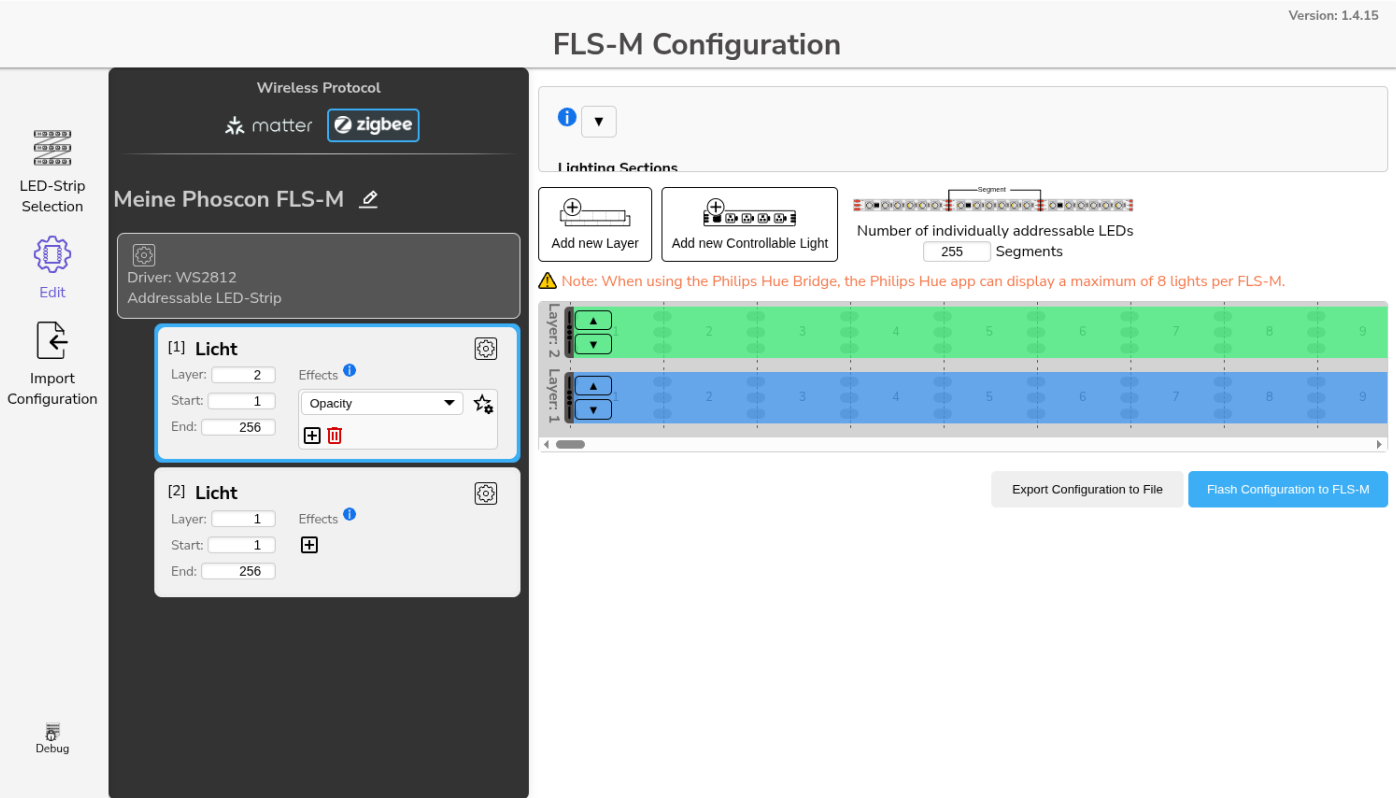

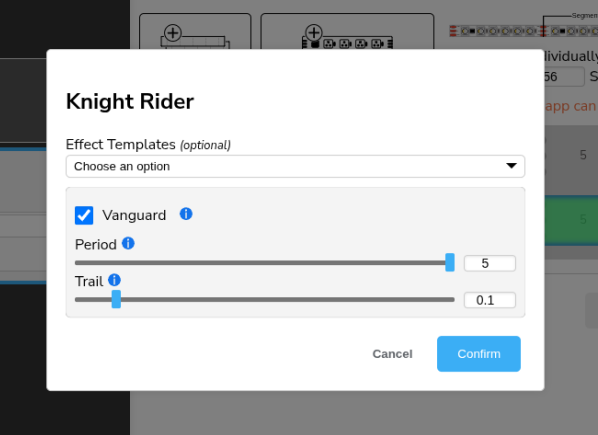

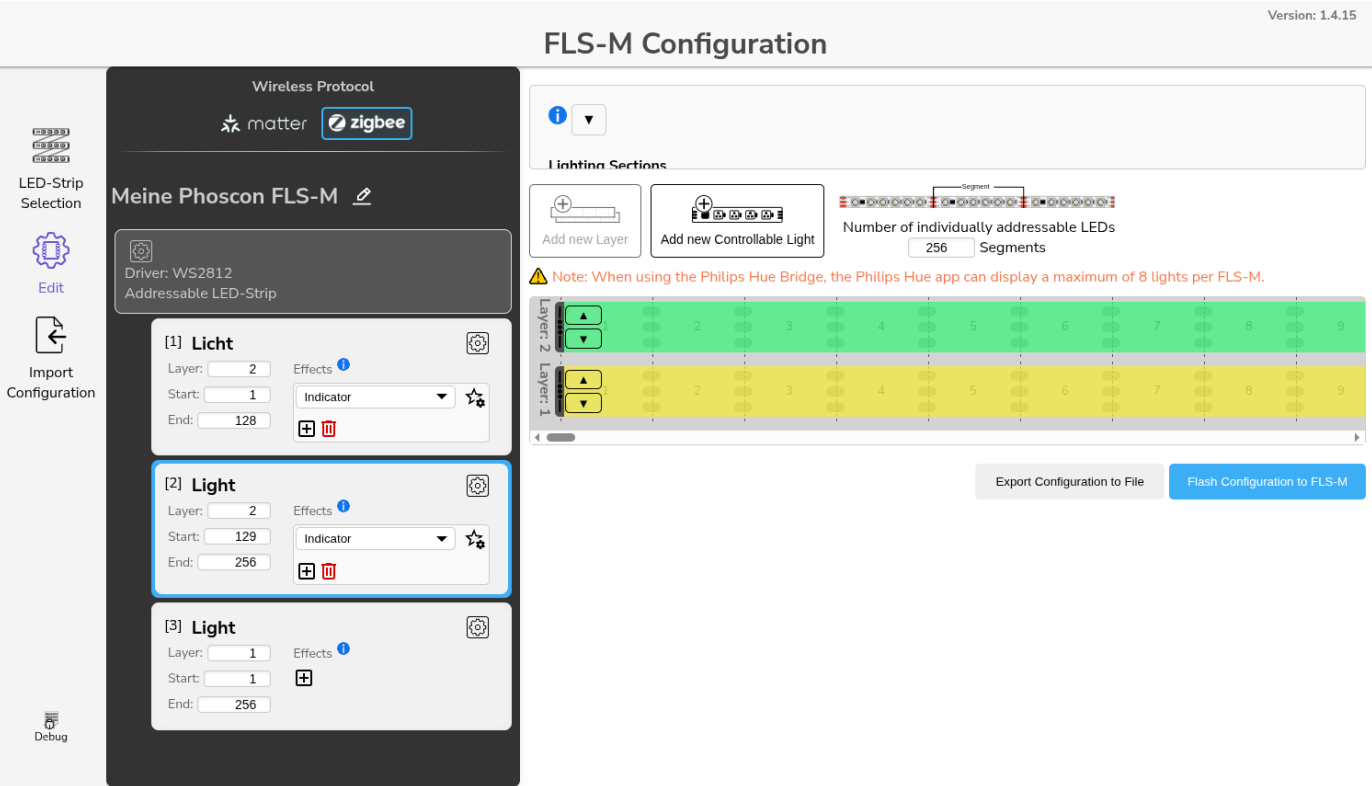

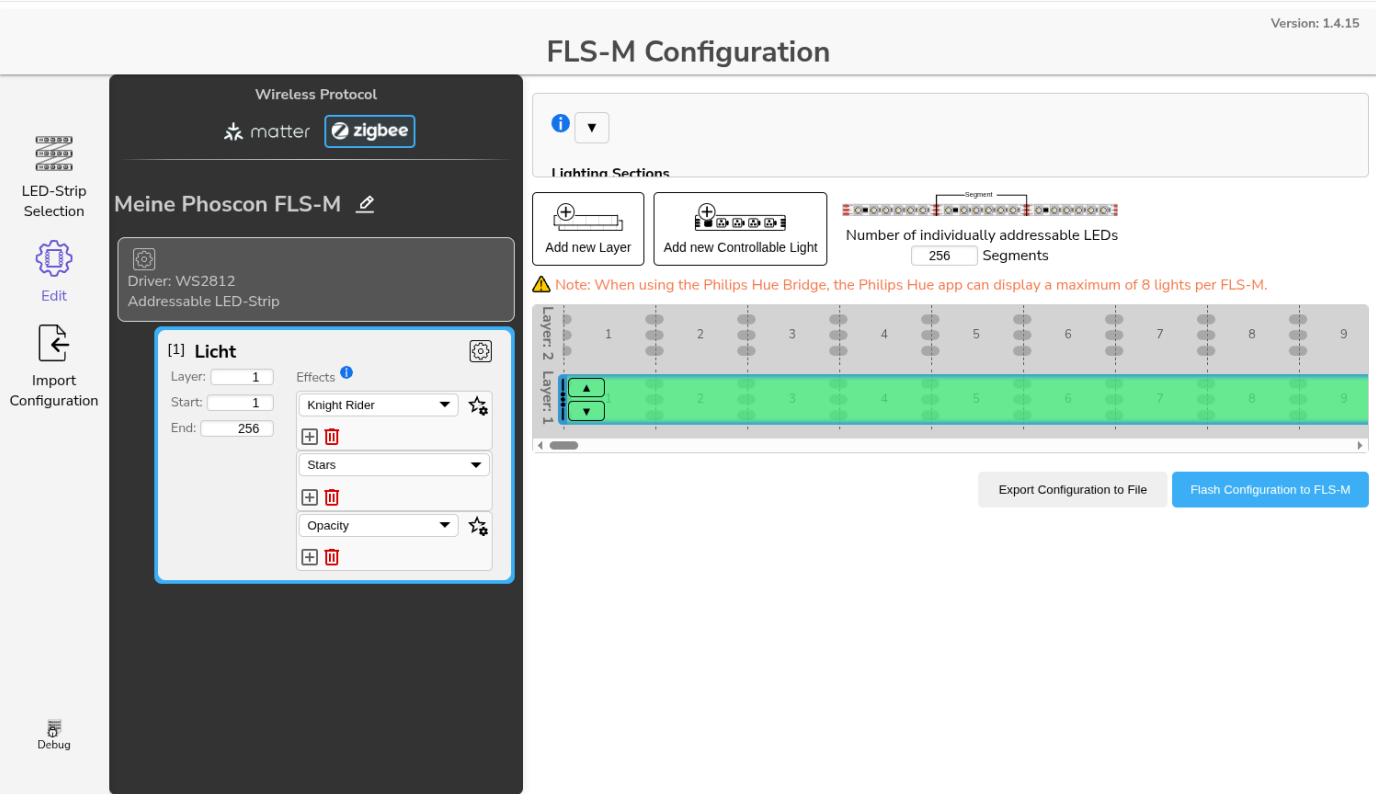

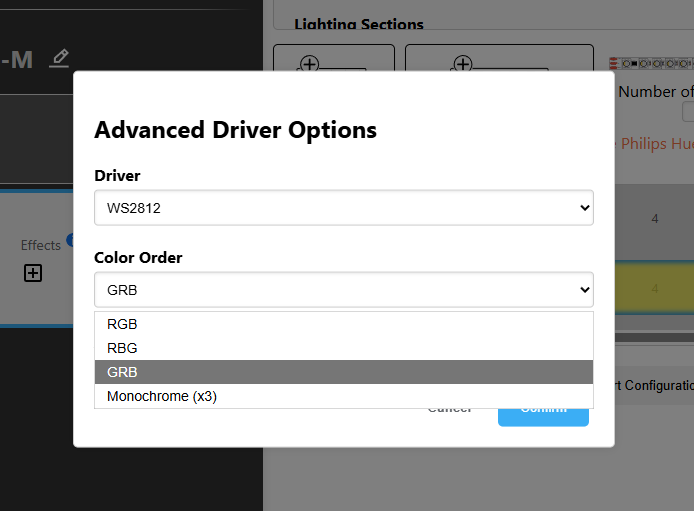

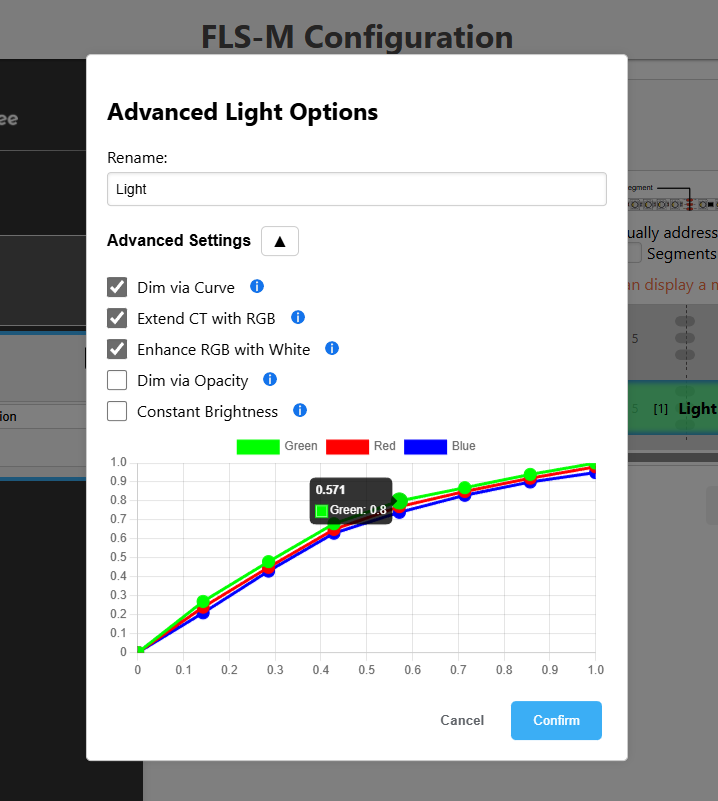

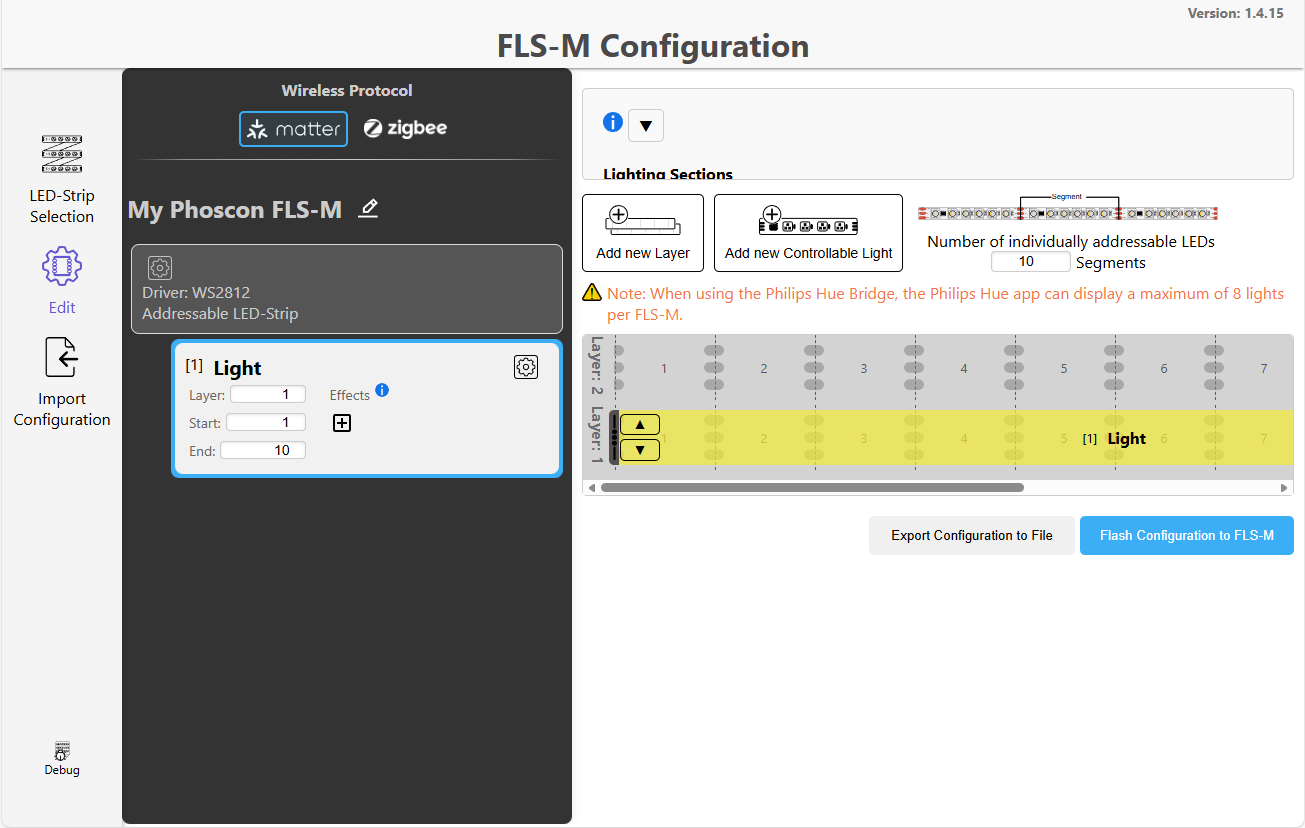

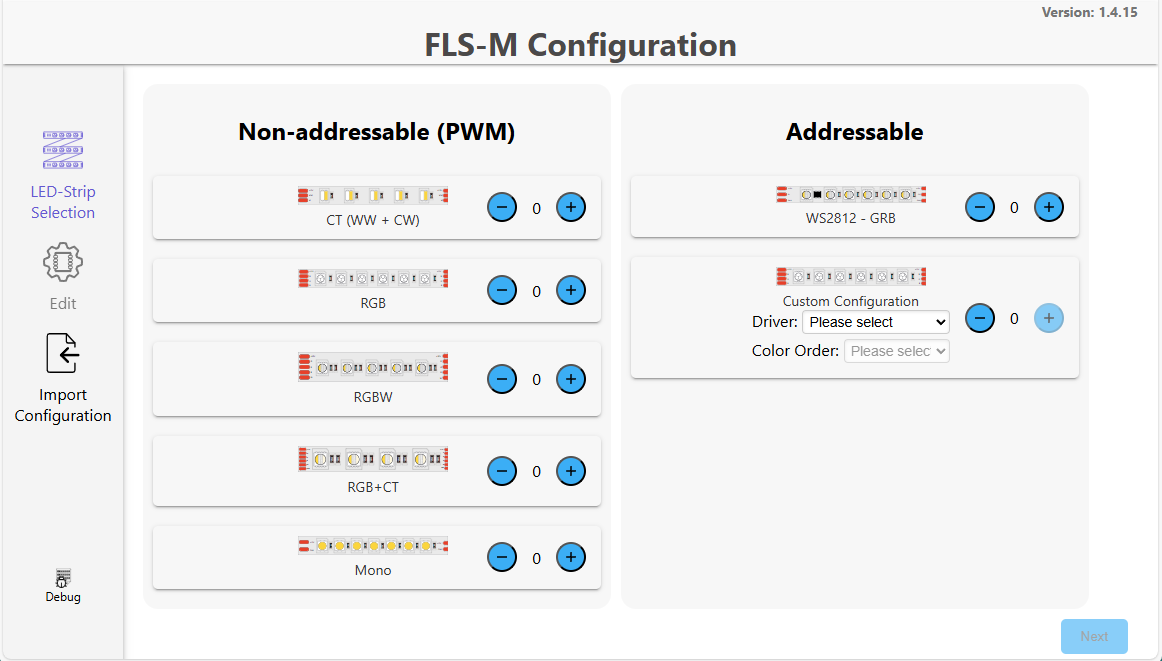

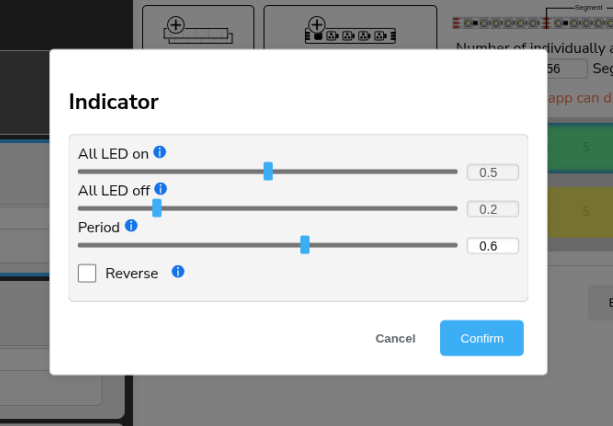

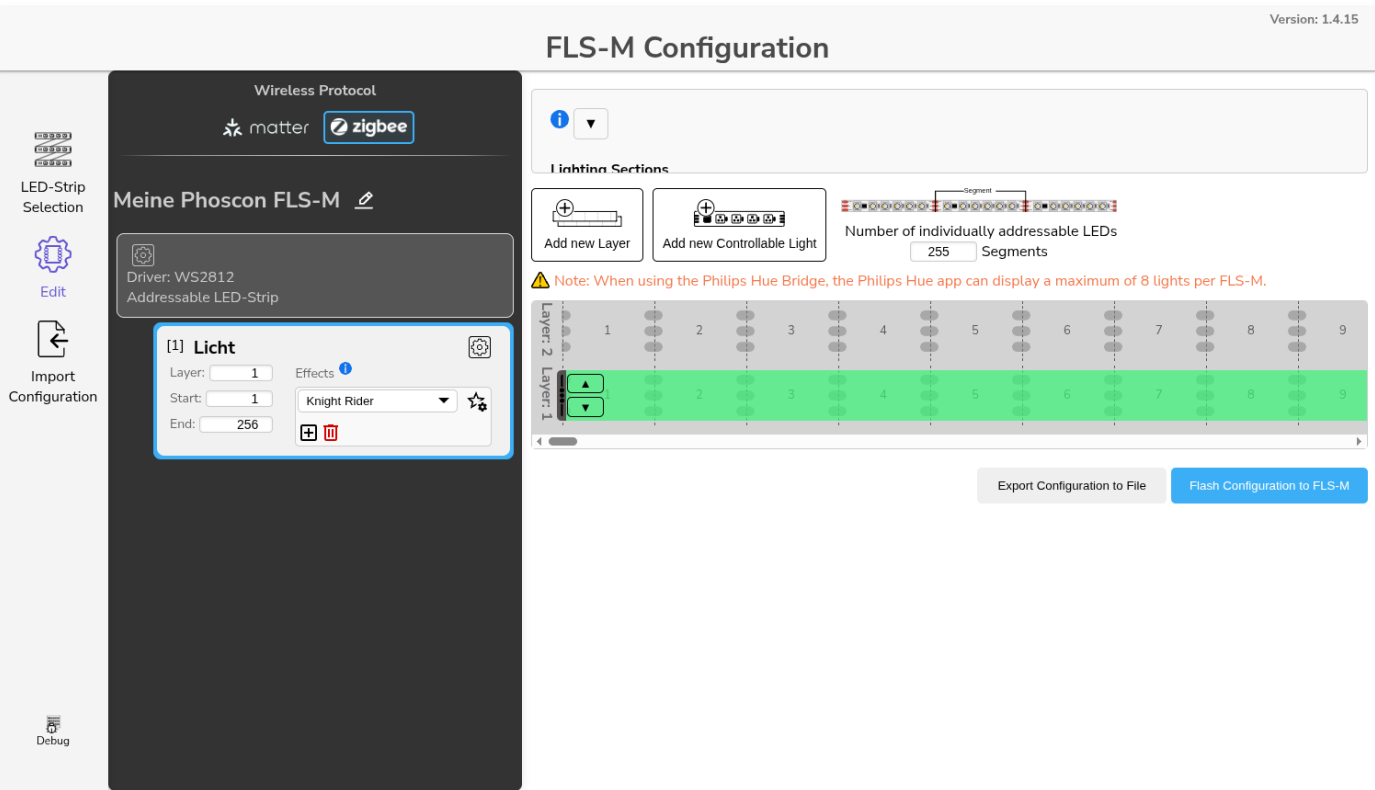

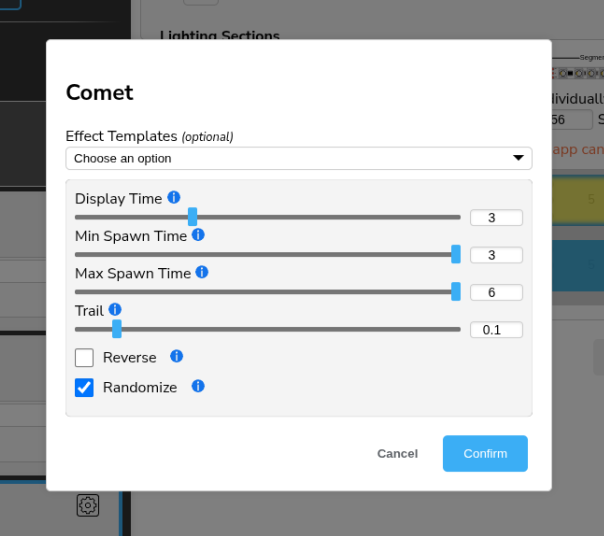

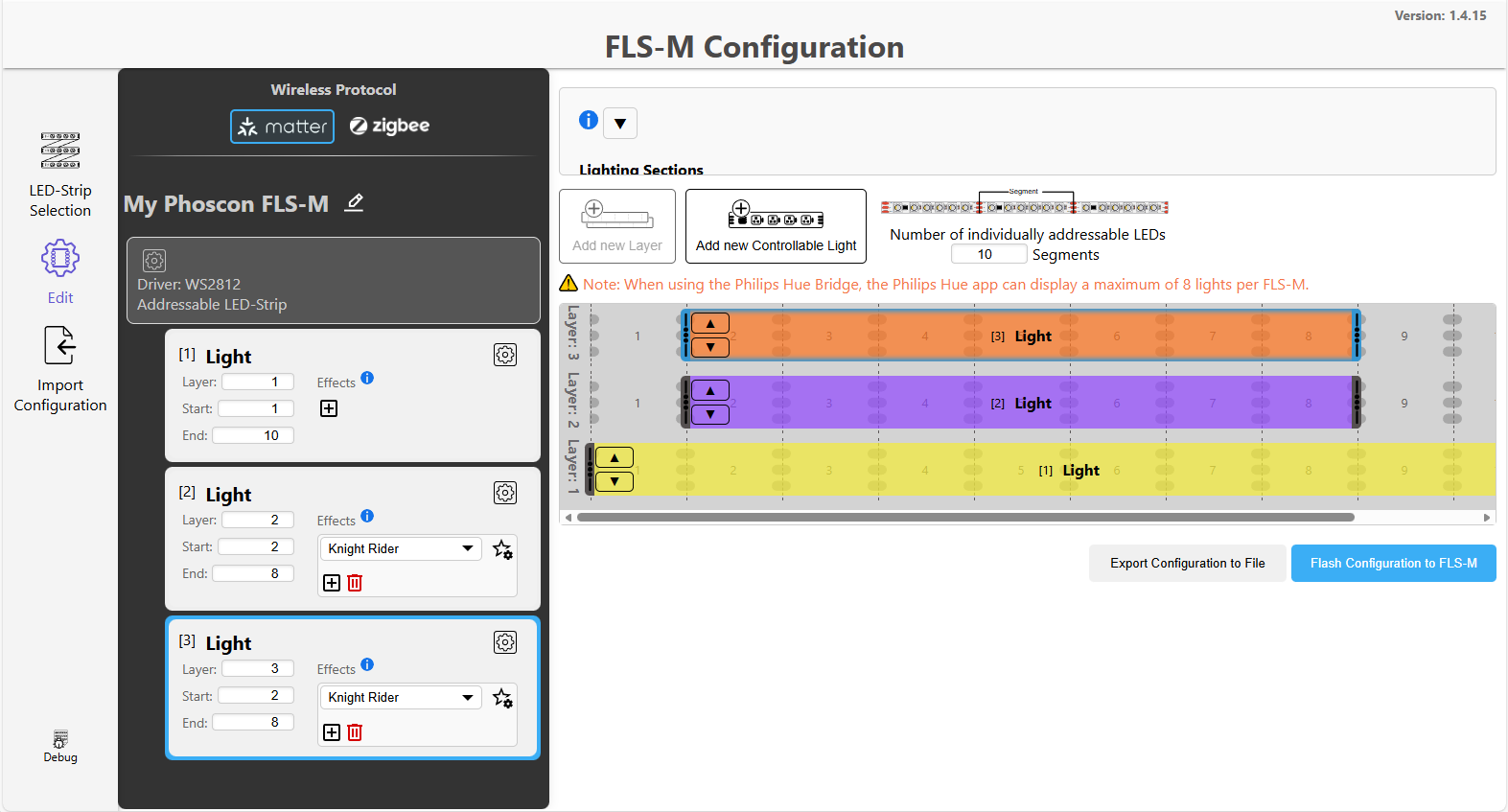

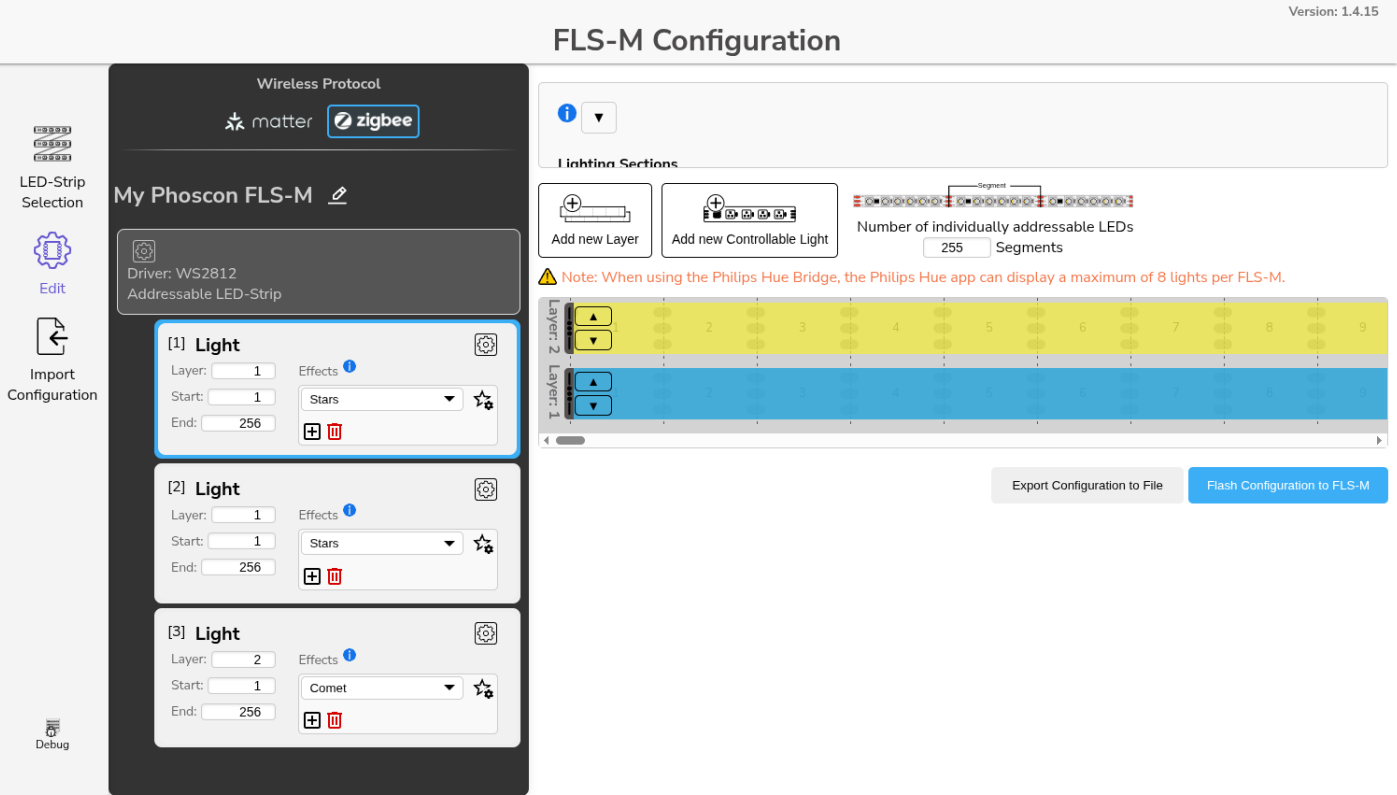

Config-Builder
Click here for the Config-Builder.
For the customer-specific configuration to be effective, the
Customer-specific configuration
mode must be set
on the DIP switch.
| DIP | Description |
|---|---|
|
Customized configuration |
